HamLinkBT-RC™

Wireless Rig Controller with Audio and PTT

Connect your transceiver & PC via Bluetooth® !

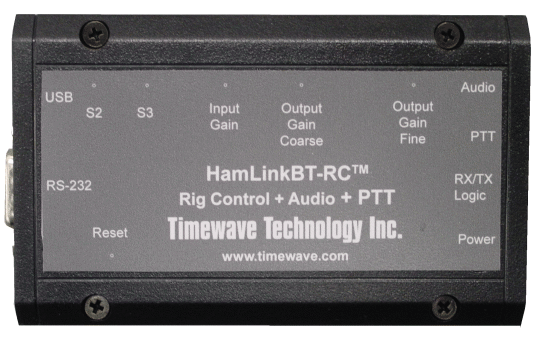

Timewave’s new HamLinkBT-RC™ Wireless Rig Controller is a Bluetooth® device for remote operation of RS-232, CAT and CIV enabled transceivers. The HLBT-RC™  features rx/tx audio, rig control, and PTT connectivity.

CAT, CI-V & RS-232 Rig Control

The HLBT-RCtm Wireless Rig Controller connects directly to transceivers with RS-232, CAT & CI-V inputs. Supported radios include Kenwood, Icom, Yaesu, Ten-Tec, Elecraft, Alinco and other models.

PTT Control

In addition to the standard rig control interface, the HLBT-RC™  Wireless Rig Controller has a PTT output that operates from your rig control program. Optionally, the HamLinkUSB plugs into your operating PC and routes a footswitch or other PTT line via the Bluetooth® link to your HLBT-RC™  PTT output.

Audio

The HamLinkBT-RC™  Wireless Rig Controller establishes an Bluetooth® audio link between your remote operating PC and your radio. You may use a computer headset/microphone, a sound card program or an external TNC to operate over this link.

Software Control Programs

The HLBT-RC™  Wireless Rig Controller is compatible with most soundcard and software rig control programs. The included RadioSwitch™  program features easy setup plus selection of any one of multiple radios connected to your PC with HLBT-RCs.

Connectors & Cables

Timewave supplies a variety of cable choices for the HamLinkBTRC™  Wireless Rig Control, ranging from standard pre-molded cables for the most common radios to custom cables for special requirements.

Features

  • Wireless Bluetooth® adapter for TTL/CMOS/RS-232 CAT/CI-V & other rigs

  • Class 1 Bluetooth® for greater range

  • eSCO audio link for better quality, lower noise

  • Fast PTT response

  • Foot Switch input option w/HamLinkUSB™

  • Unique serial numbers allow multiple

  • HamLinkBT-RCtms on the same PC

    •

  • Cables available for Yaesu, Kenwood, Icom, Ten-Tec, Elecraft, Alinco & more

  • Includes CD with Timewave RadioSwitch™ program and rig control program links

  • Bluetooth® security, interference immunity

For full walk around portability, see sister product HamLinkBT-BTH™!
